Lauxes Floor Grates are carefully designed and manufactured from triple anodised aluminium to create a robust, cost effective and versatile drainage solution for any indoor and outdoor wet area. With Lauxes Floor Grates there is no compromise on functionality or style when creating designer living spaces.

Specifications:

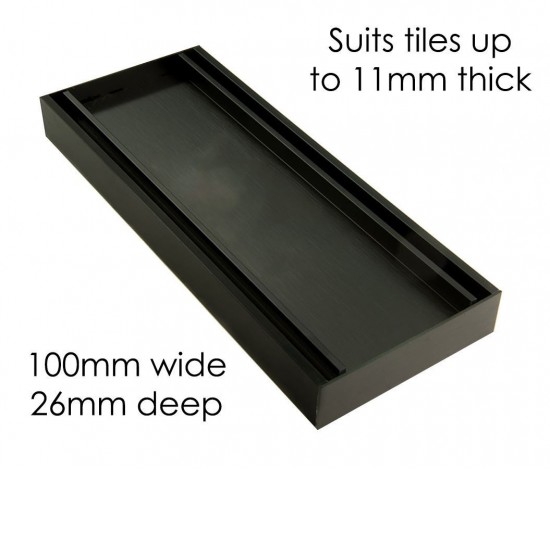

• Size (mm): (100-5600)L x 100W x 26H
• 3 Waste Sizes: 40/50/80mm
• Color: Black
• Rust proof
• Lightweight
• Top grate easily removed for cleaning
• Different colour choices to suit application
• Easy to cut to desired length
• No welding required
• No major plumbing involved as waste can be positioned anywhere along the bottom tray
• Perfect use for indoor/outdoor applications
• Lifetime: Rustproof Warranty
•

• Package Contents:
• 1 x Floor Drain
• 1 x 40/50/80mm Waste
• 1 pair of end cap

Guidance For Choosing The Waste Size :

If you are installing shower grate for one shower head you will only need a 40mm waste . For a double shower (two shower heads) you will need a 50mm waste or a larger size waste . If the water is of greater volume or a longer length is to be used around and outdoor living area or a pool ect, more than one outlet might be required.

Cutting & Assembly Instructions:

For easy cutting of floor grate, we recommend the use of a compound mitre saw fitted with a multi-material cutting blade 80 tooth or more. A compact drill with a bimetal hole would be adequate to drill the hole for the waste outlet.

1.Cut the bottom tray 3mm shorter than desired length to allow end caps to be fitted

2.Cut the top grate 1mm shorter than the bottom tray to allow for easy roll in of top grate and tidy fit

3.Using the suitable size hole saw for your pop waste, drill out the hole at the required position to align with the waste pipe in the floor

4.Insert the end caps into the bottom tray and secure with a bead of silicone on the inside of the tray

5.Place silicone around the lip of the pop waste and secure to the underside of the bottom tray at the recently drilled hole
